Trailer Mounted Packages

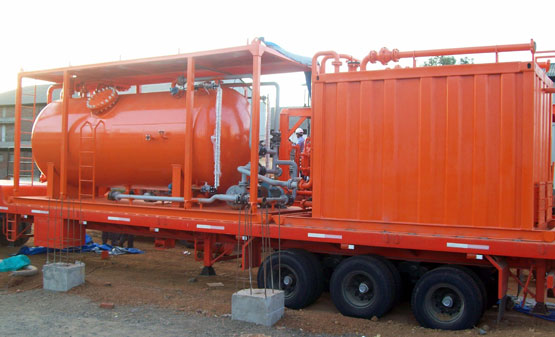

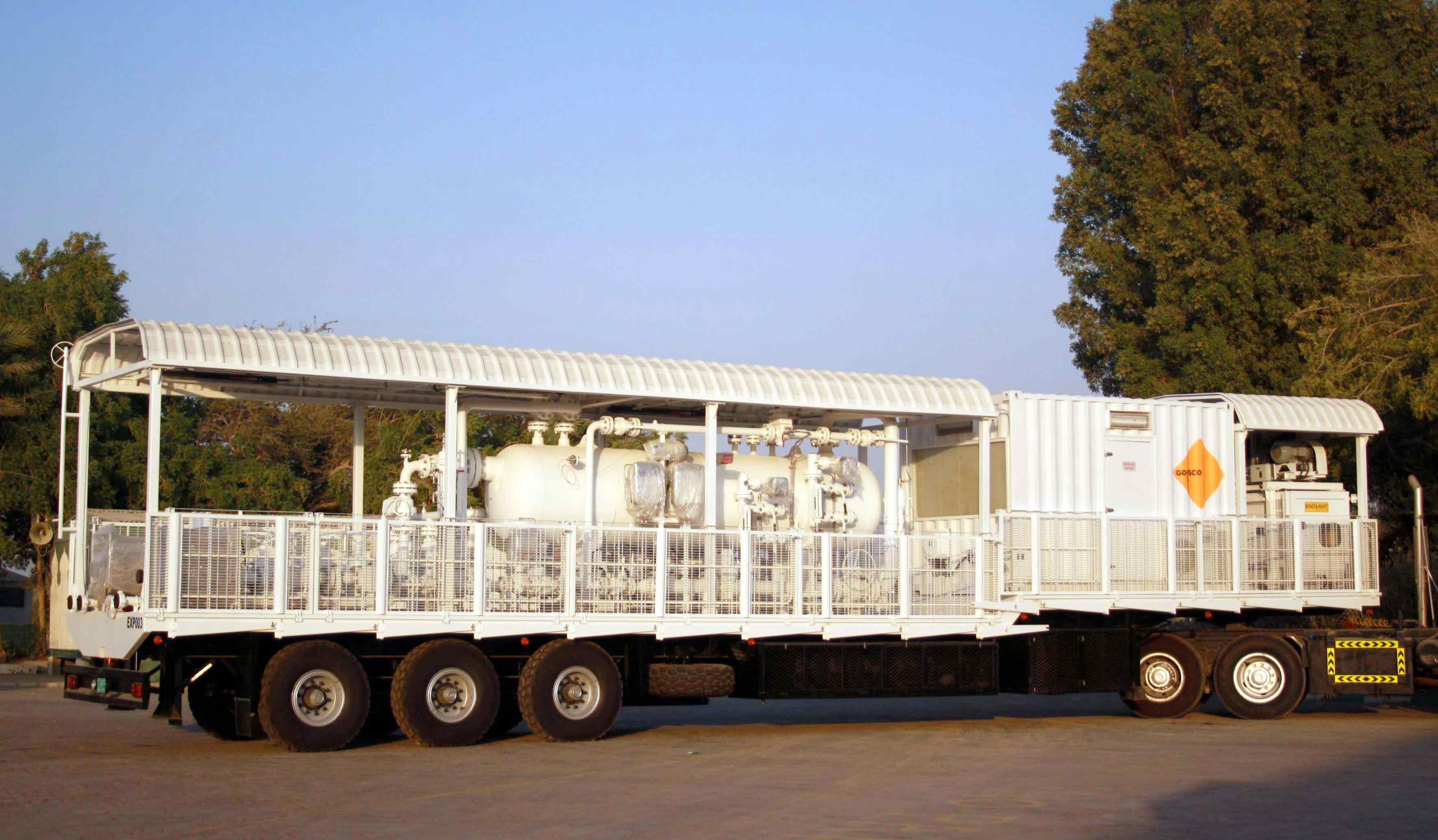

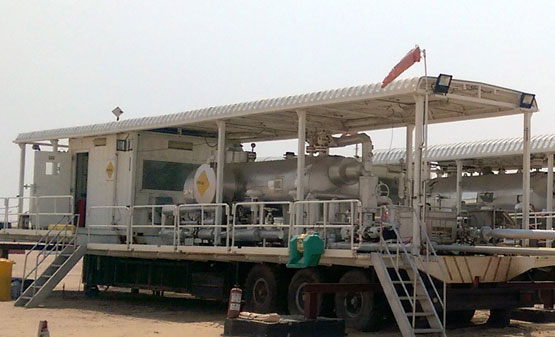

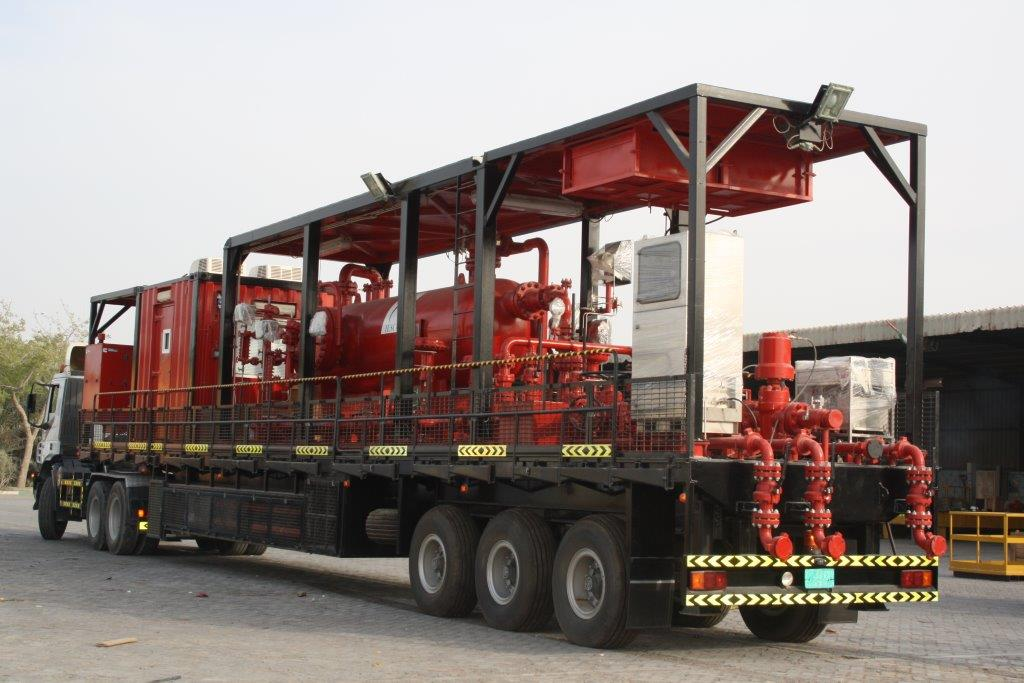

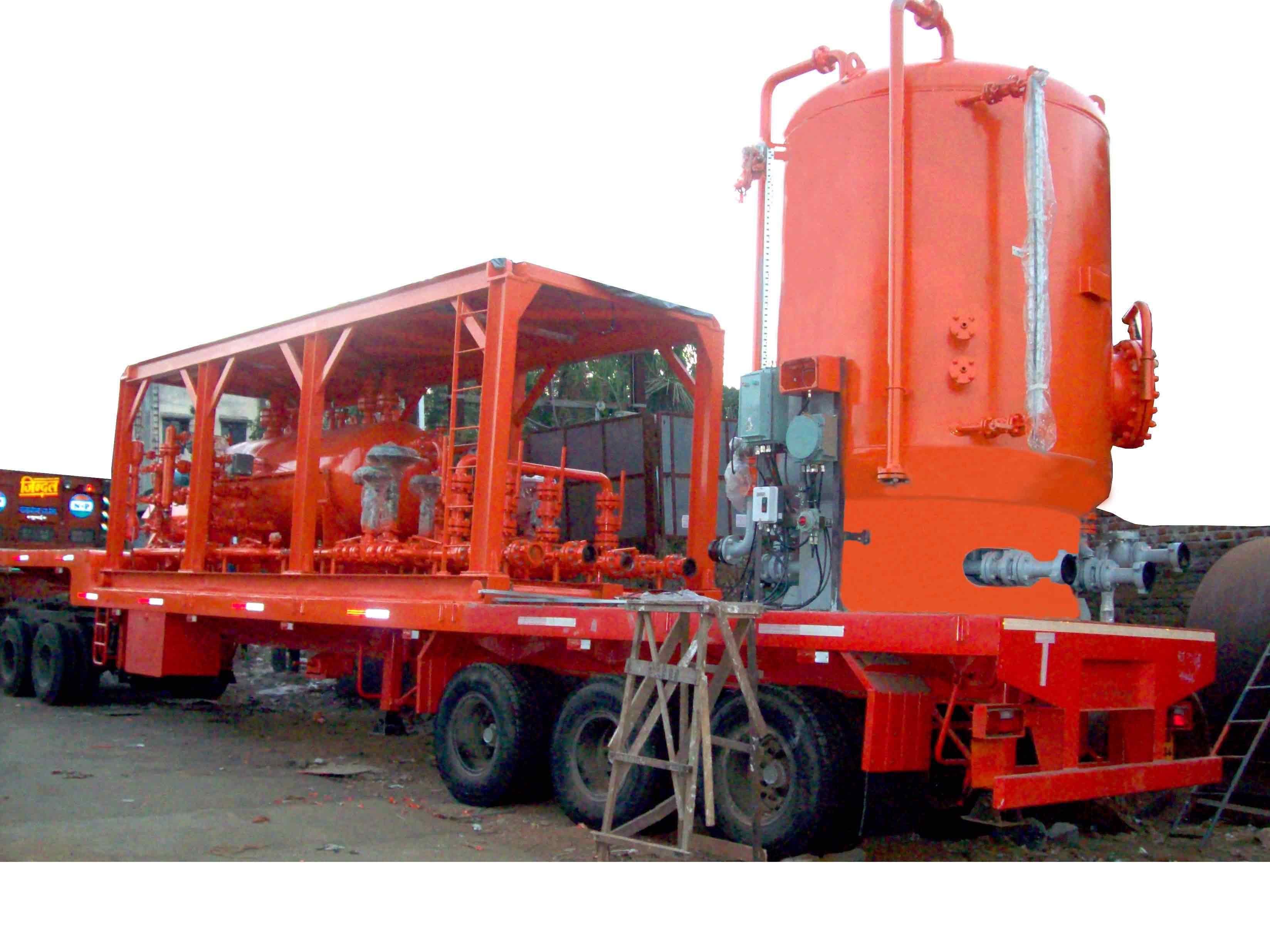

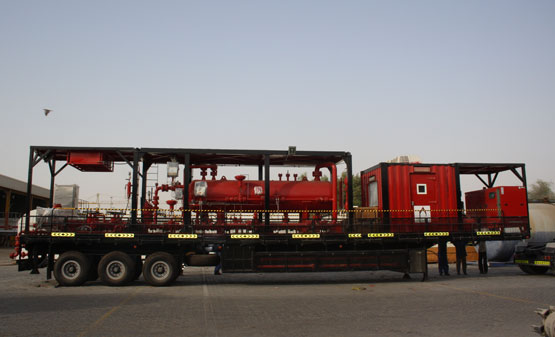

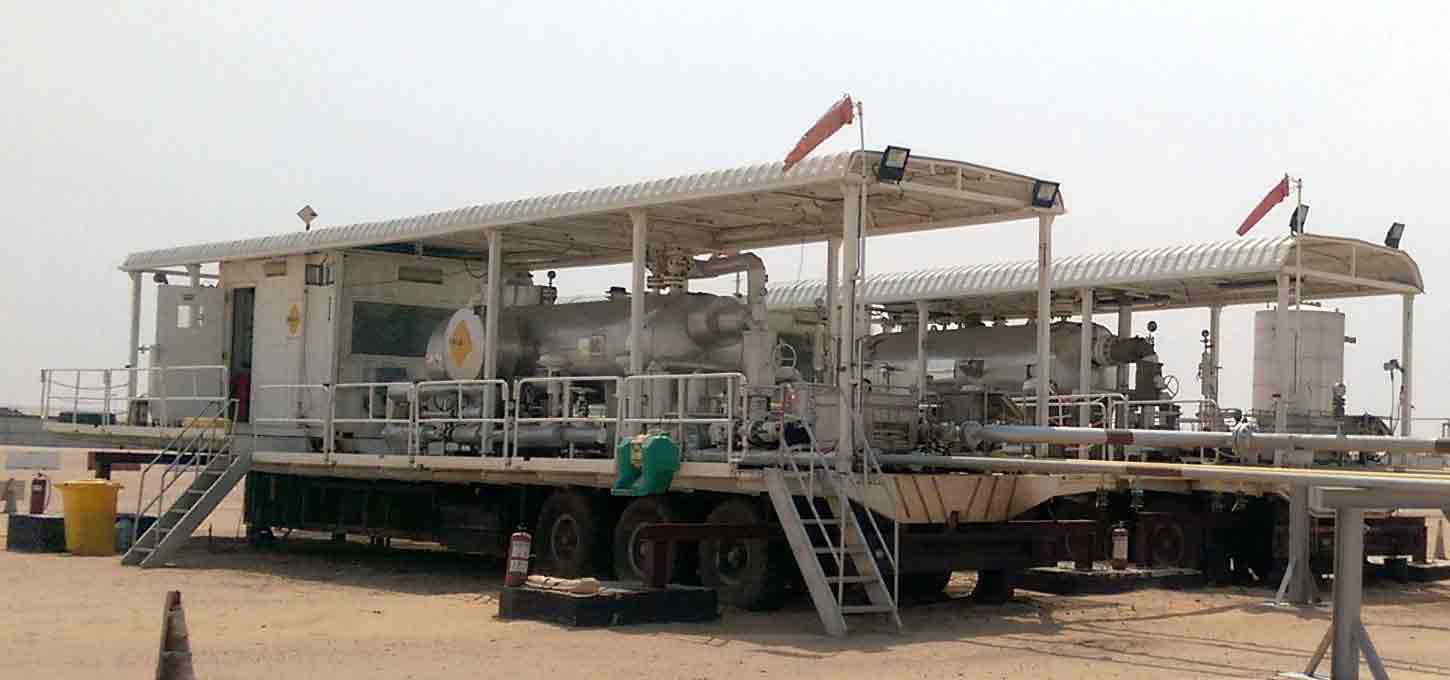

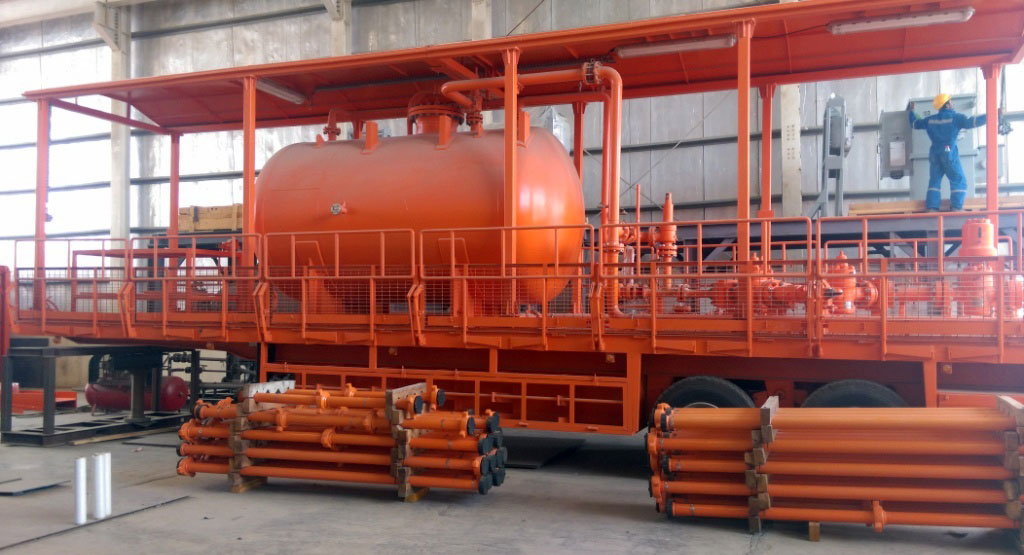

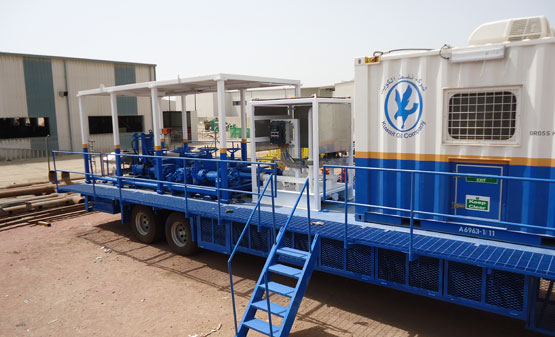

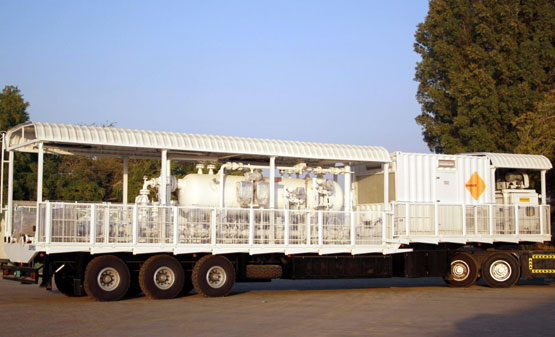

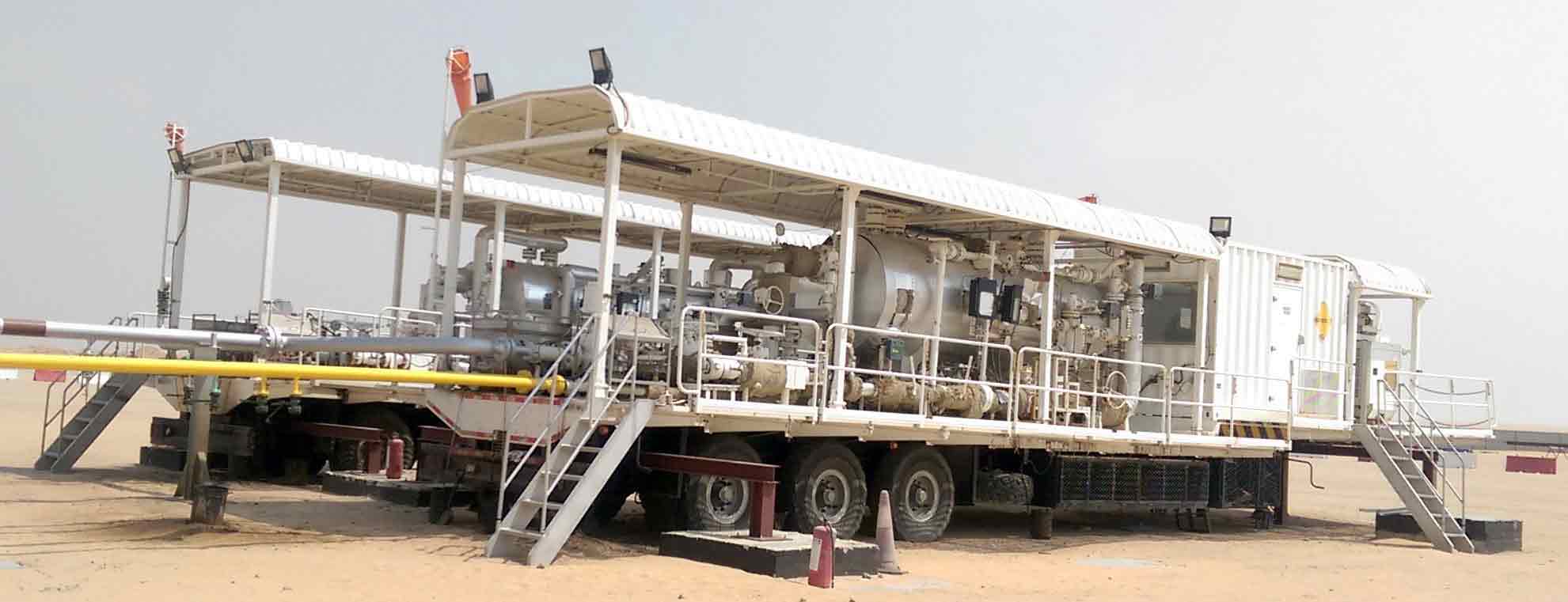

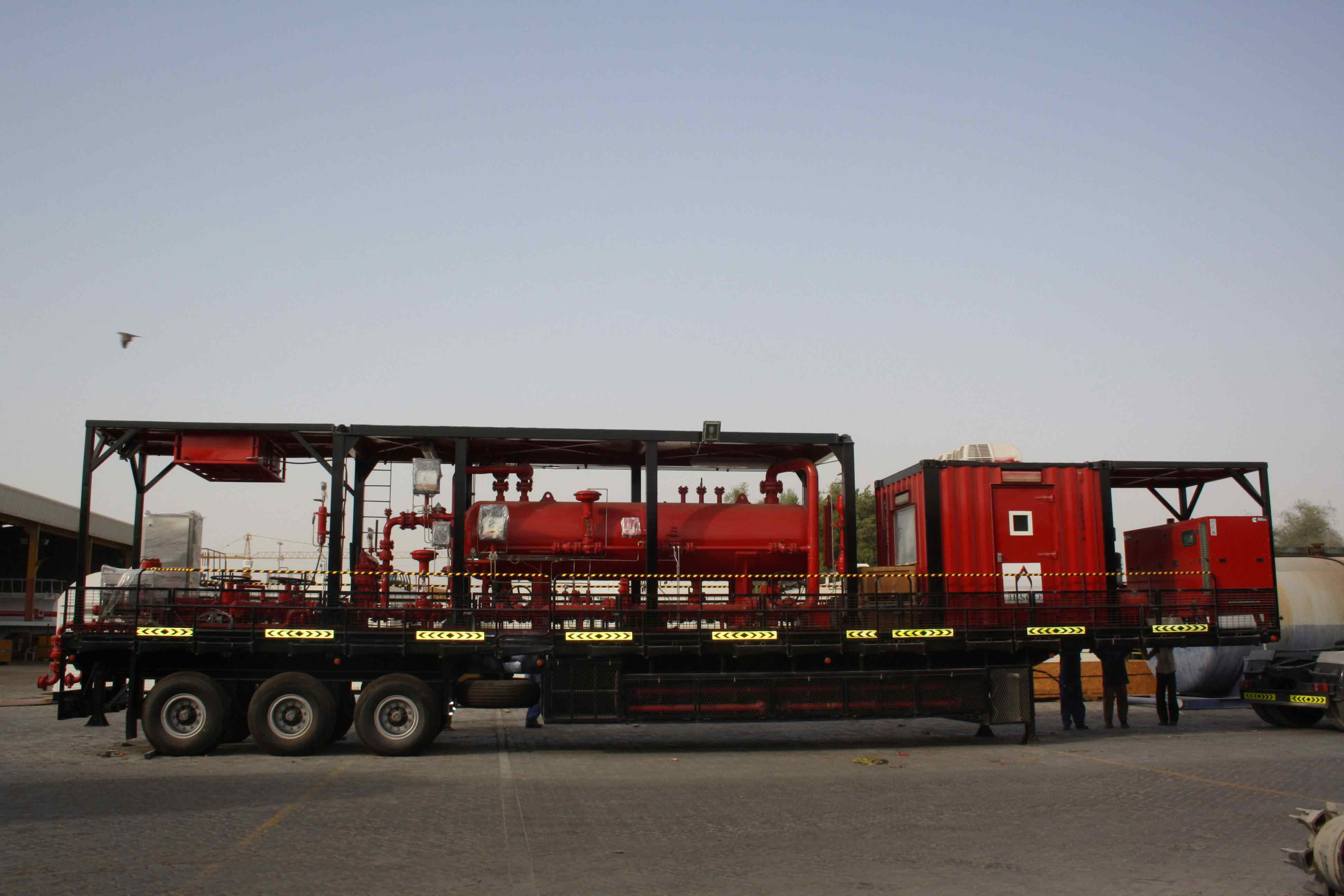

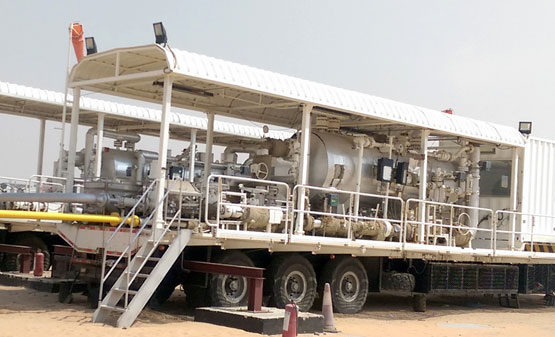

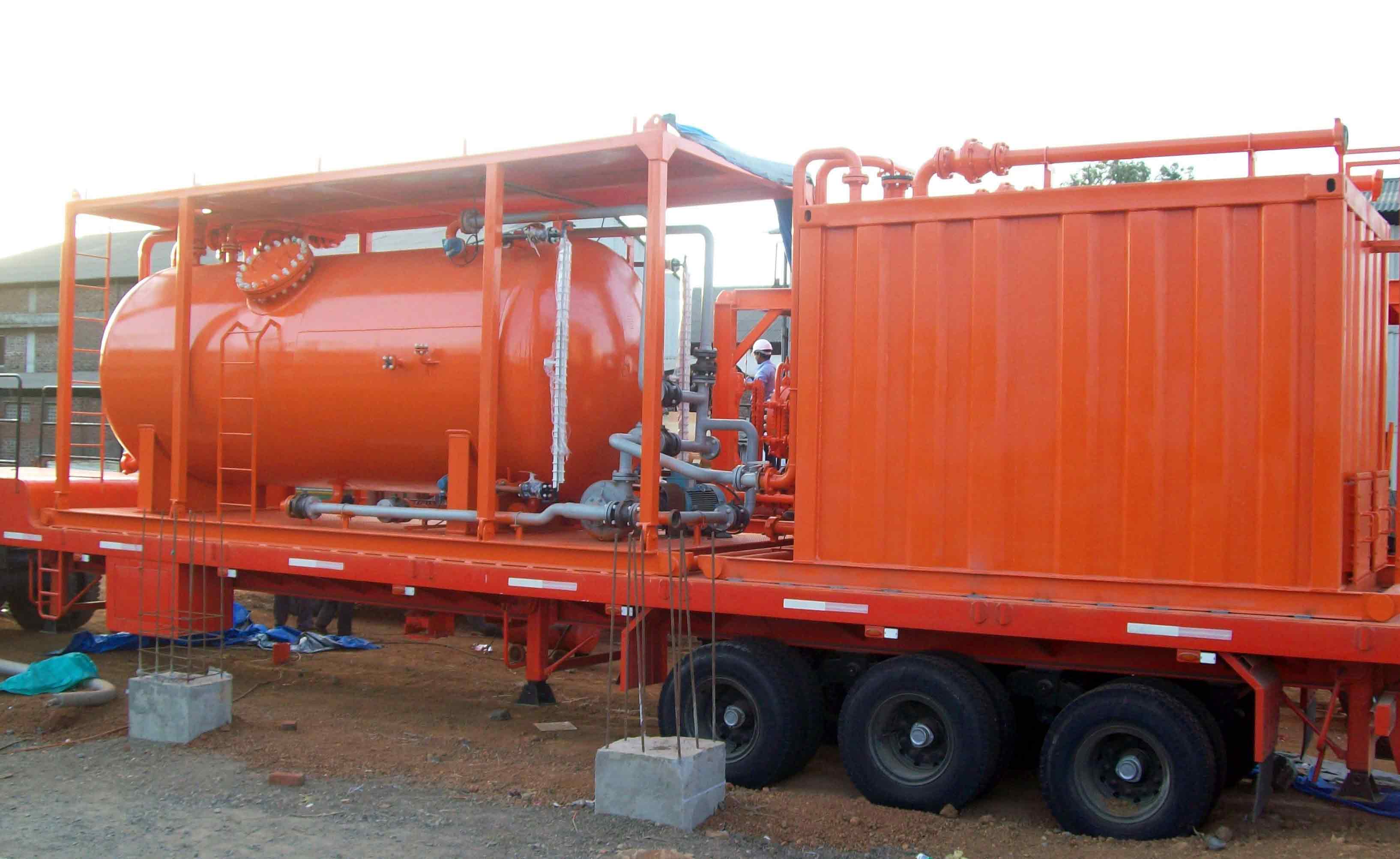

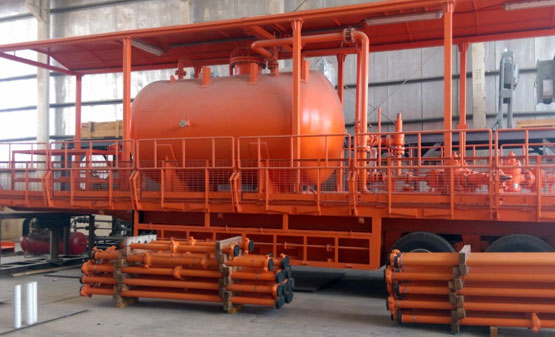

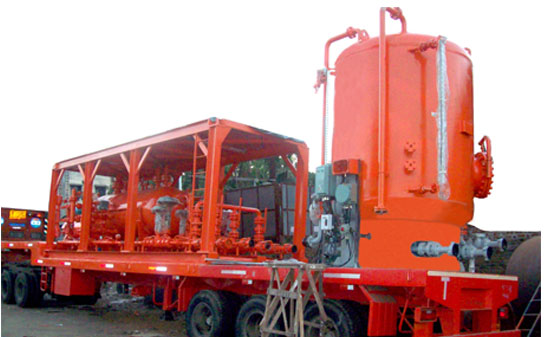

SEPL Trailer Mounted Three Phase Separator are been used for Testing of New or Existing Wells to know the performance i.e. GOR, Oil Flowrate, Water Flowrate, Density, Composition of Gas and other few parameters to know the behaviour.

Purpose and Application.

These Packages are flexible and functional and easy to operate and save a large amount of cost when used in desert or areas where basis utilities are a problem i.e. Electricity and Water.

According to the Oil Reservoir Conditions and Client Requirement the above equipment can be assembled in order to meet the well testing service in the Oil and Gas Fields.

The upper and lower space of the trailer bottom skid is utilized sufficiently, so all the required pipeline, elbows, tools, spare parts and the required Items are mounted onto the trailer.

Utility Trailer can be of 20’ / 30’ / 40’ / 50’ and can be built as per requirement for the functioning and accessibility.

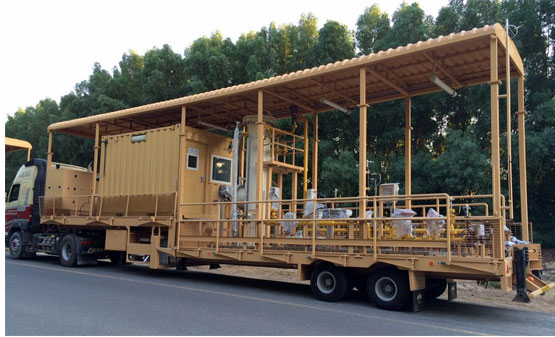

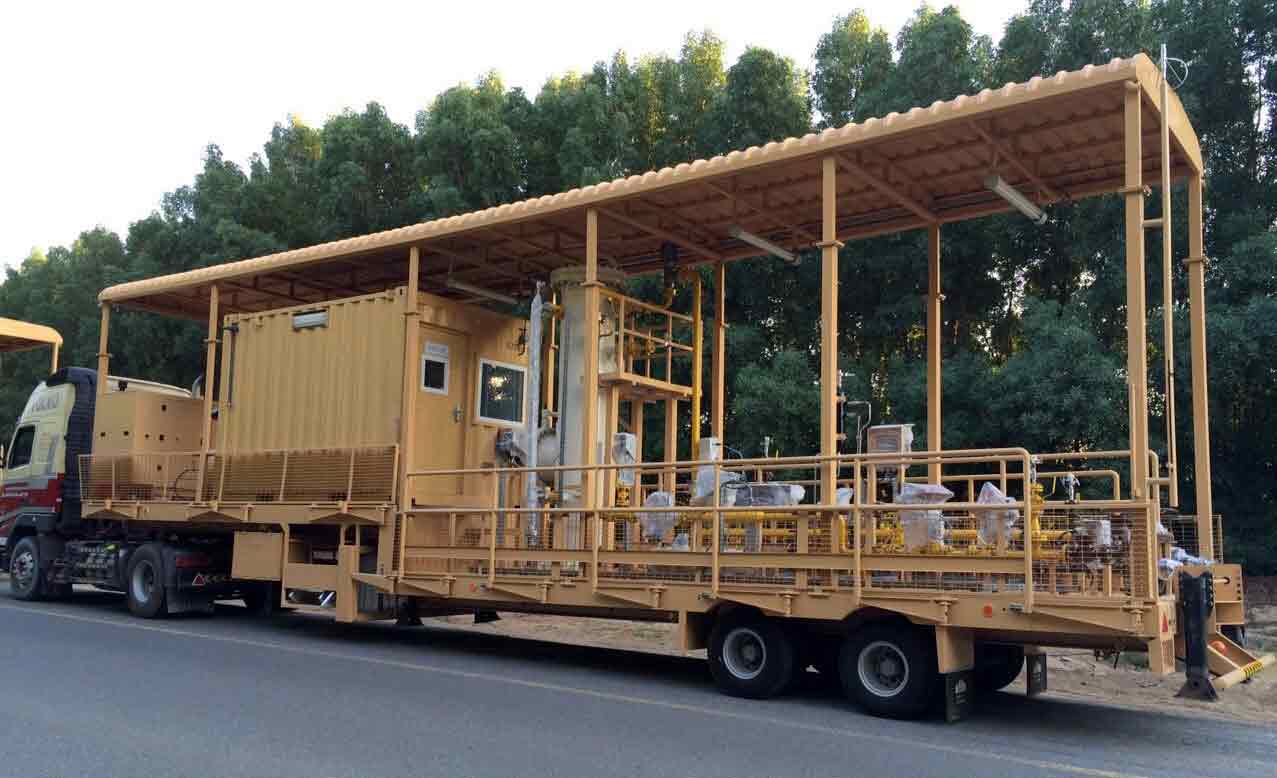

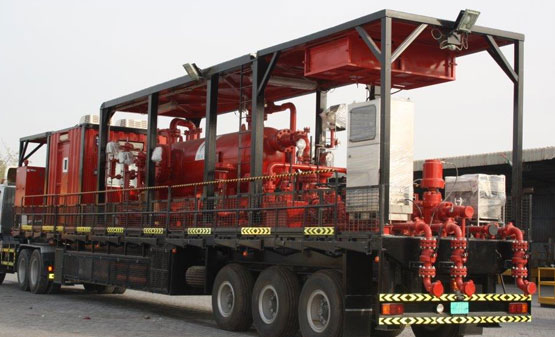

The system mainly includes the upstream pipeline, Pup Joints (Loosely provided), Surface safety valve (including ESD), Control Panel for SSV and SDV, Upstream data header, Choke Manifold, Downstream Data Header, Downstream Pipeline, Test Separator Skid with all necessary Instruments i.e. Gauges, Transmitters, Control Valves, Flow meters, Pen Recorder etc., Horizontal Surge Tank Skid (if required), Data Acquisition System, Laboratory Apparatus, Data Acquisition & Oil and Chemical Analysis Laboratory Room, Diesel Generator, Air Compressor and its Room and other auxiliary facilities.

SEPL standardized well testing Trailer Mounted Packages range includes:

• Flow rate – 2000 to 30000 BBLD - (Min/Nor/Max)
• Gas - 20 to 65 MMSCFD - (Min/Nor/Max)
• Test Temperature – 250 °F
• Test Pressure – 2500 psi.

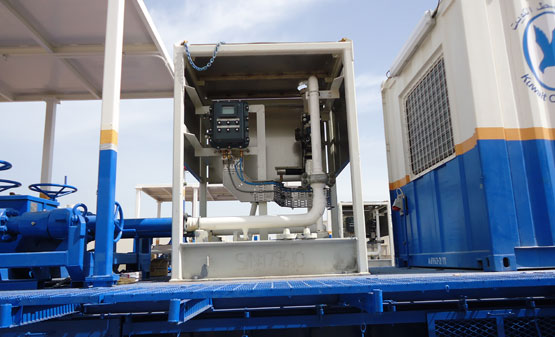

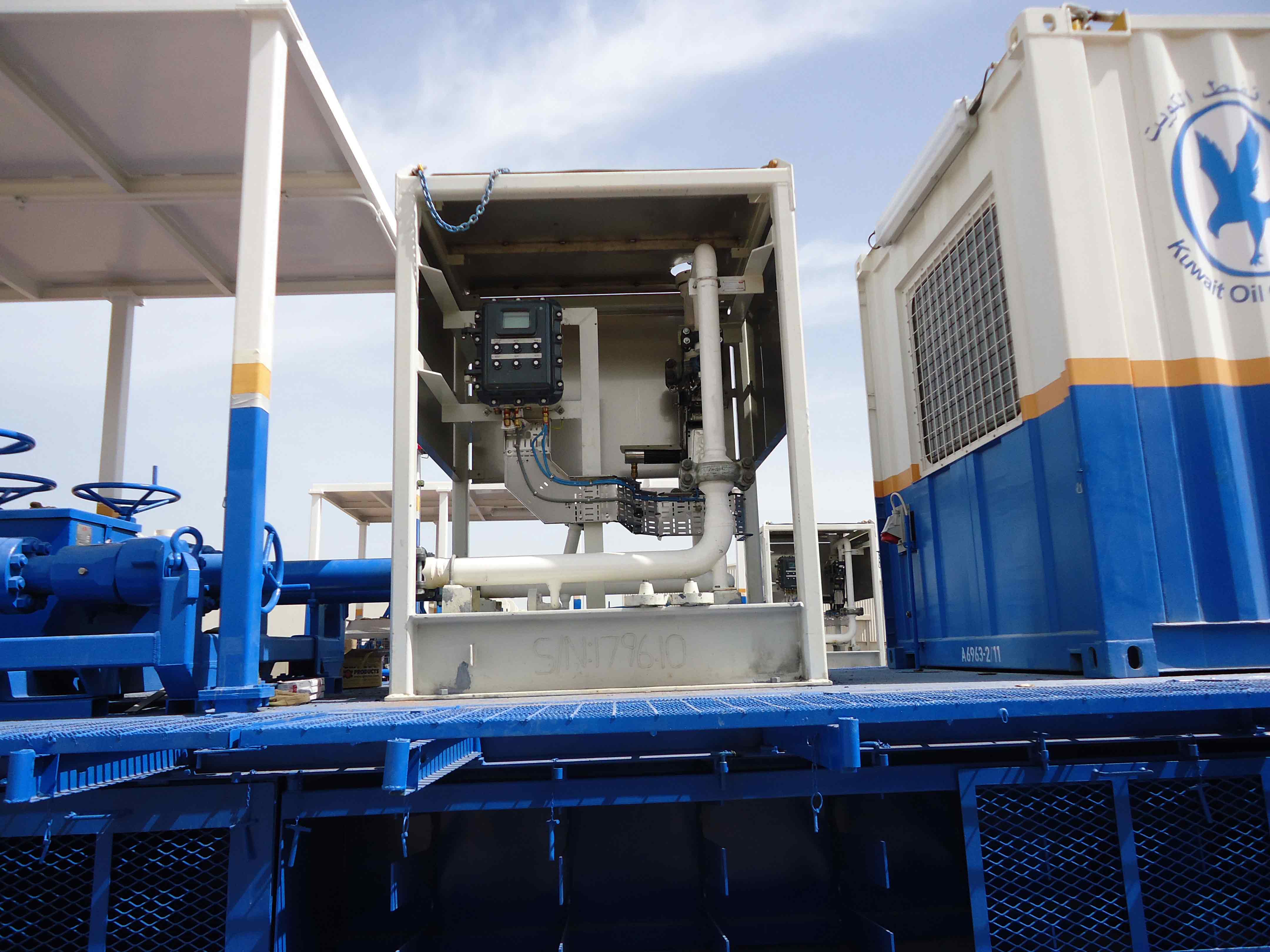

The system mainly includes the upstream pipeline, Pup Joints (Loosely provided), Surface safety valve (including ESD), Control Panel for SSV and SDV, , Upstream data header, Choke Manifold, Downstream Data Header, Downstream Pipeline, MPFM with all necessary Instruments i.e. Pressure & Temperature Transmitters, Flow Computer etc., Horizontal Surge Tank Skid (if required), Data Acquisition System, Laboratory Apparatus, Data Acquisition & Oil and Chemical Analysis Laboratory Room, Diesel Generator, Air Compressor and its Room and other auxiliary facilities.

SEPL standardized well testing Trailer Mounted Packages range includes:

• Flow rate – As required

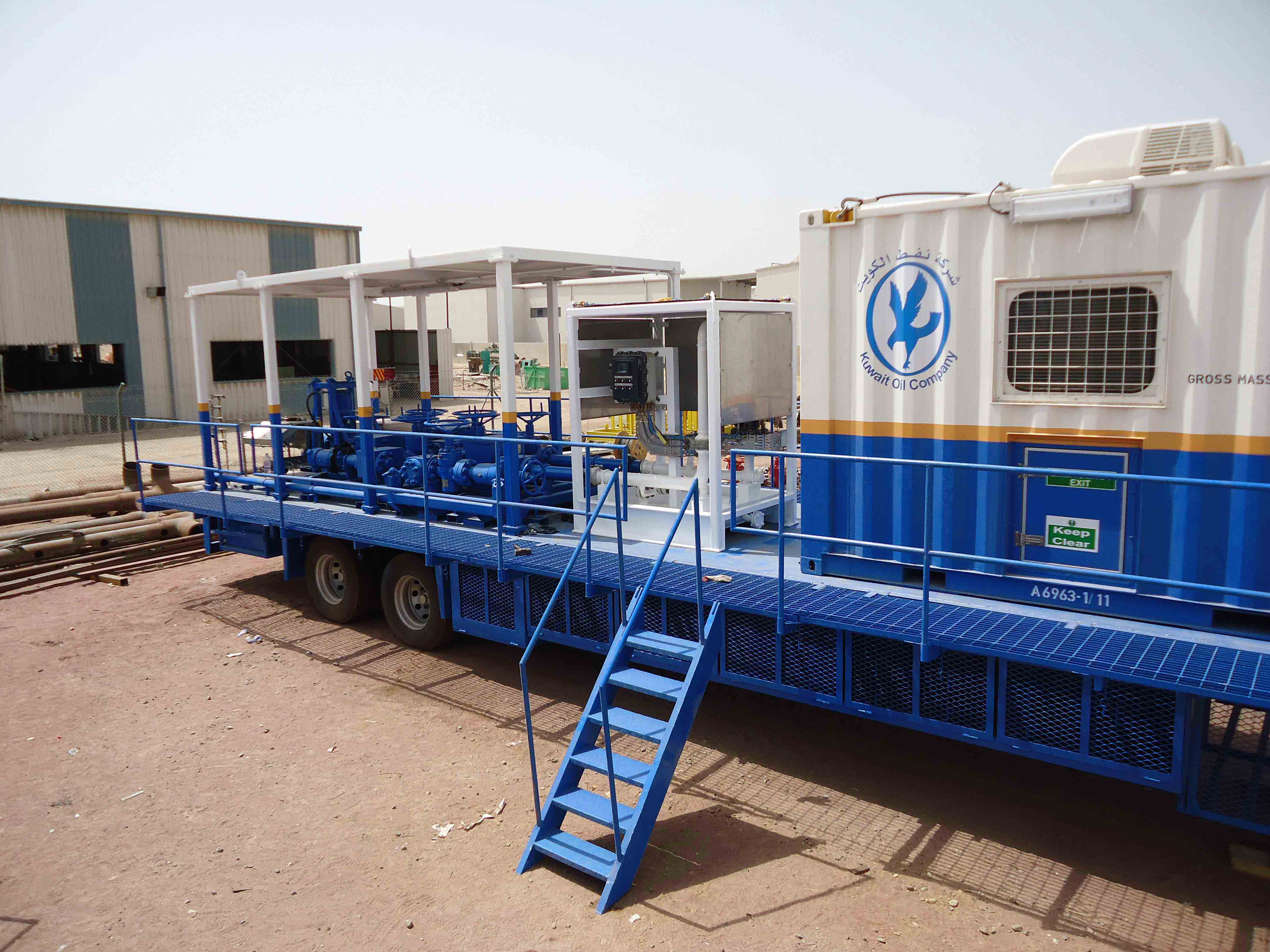

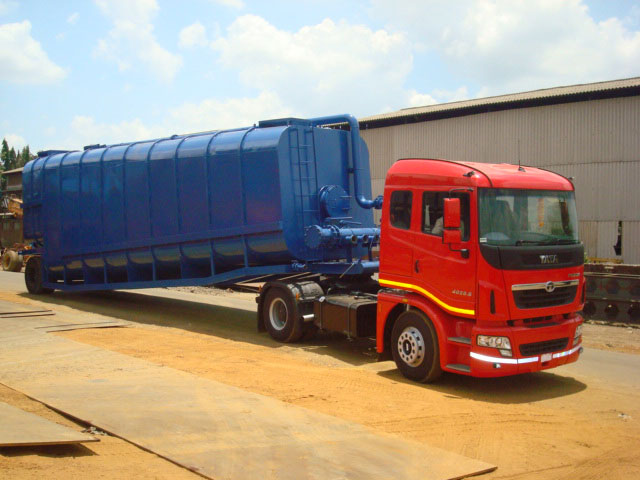

The system mainly includes the upstream pipeline, Pup Joints (Loosely provided), Upstream data header, Choke Manifold, Downstream Data Header, Downstream Pipeline, Test Separator Skid with all necessary Instruments i.e. Gauges, Transmitters, Control Valves, Flow meters, Pen Recorder etc., Horizontal Surge Tank Skid (if required), Surge Tank, Crude Oil Transfer Pumps and other auxiliary facilities.

SEPL standardized well testing Trailer Mounted Packages range includes:

• Flow rate – 2000 to 15000 BBLD (Min/Nor/Max)
• Gas - 20 to 65 MMSCFD (Min/Nor/Max)
• Test Temperature – 250 °F
• Test Pressure – 1440 psi.

These Packages are flexible in function, easy to operate, offers a compact, simple and cost-reduced alternate solution for present new techniques which enables higher sand-free production rates which helps to eliminate sand control measures in the downstream.

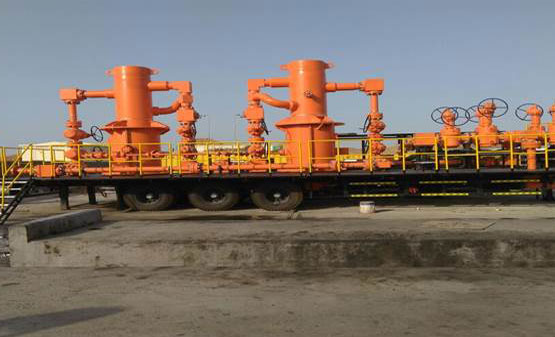

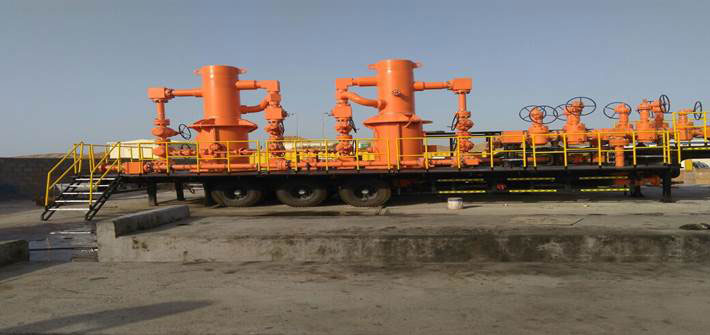

The Trailor mounted package consist of 2 no’s Desanders, Manifold, Gate Valves, Plug Valves (Low Torque Valve), Non Return Valves, Data Header and other related accessories. The upper and lower space of the trailor bottom skid is utilized sufficiently, so all the required pipeline, elbows, tools, spare parts and the required Items are mounted on the trailor. The Desander Package can be customized and assembled as per Clients requirement.

The Multiphase Desander operates on the principle of centrifugal force and cyclonic effect. Tangential entry of fluid creates spin inside the cyclonic body having APEX at the bottom. Cyclone shape is the most responsible for creating the spin required for the centrifugal force and separate sand and sediments by means of gravity and gets collected in accumulator.

SEPL Well Testing Trailer Mounted Packages range includes:

• Test Temperature – 250 °F
• Test Pressure – 22500 psi.
• Working Pressure – 15000 psi
• Utility Trailer (20’ / 30’ / 40’ / 50’)
